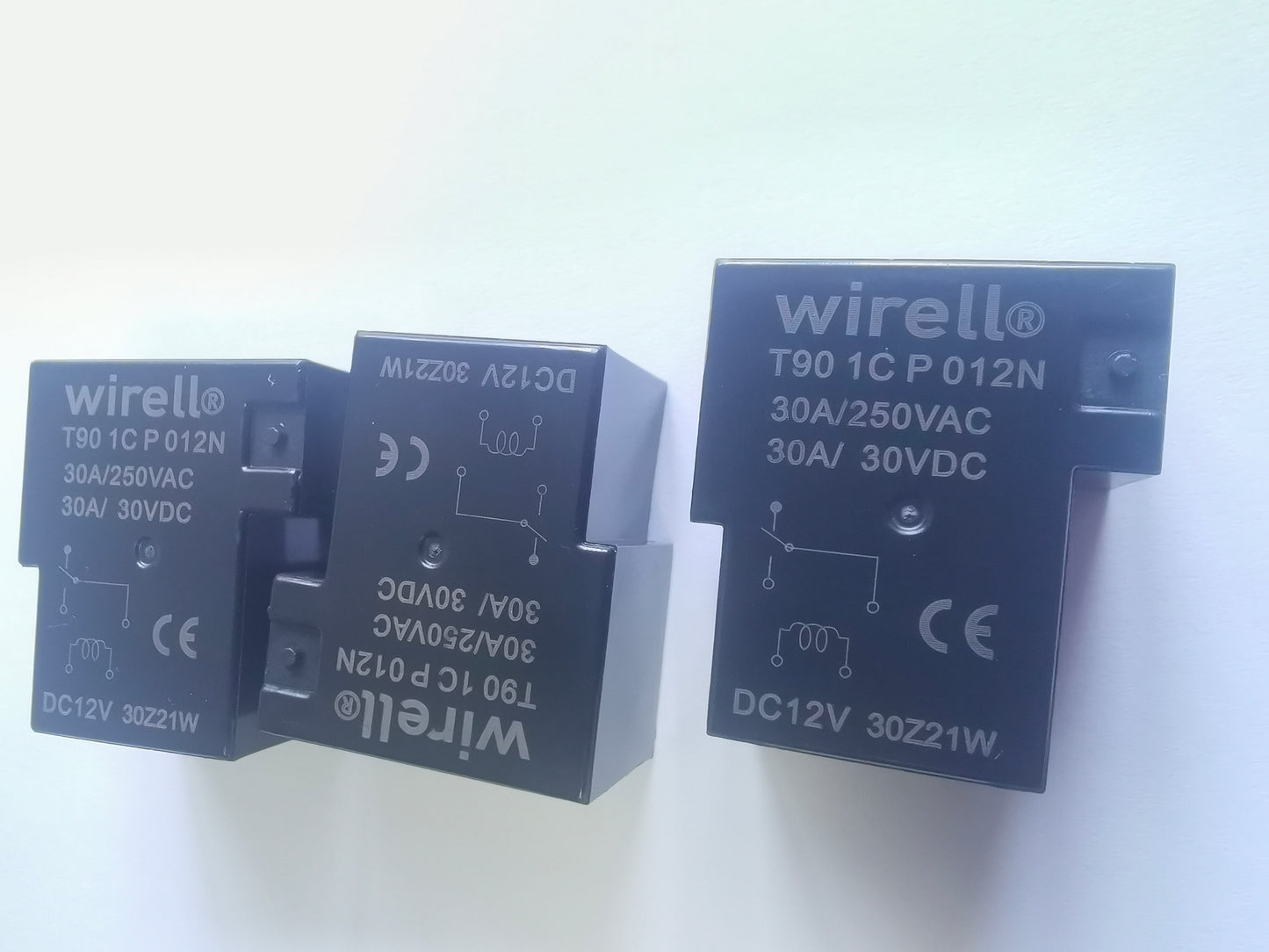

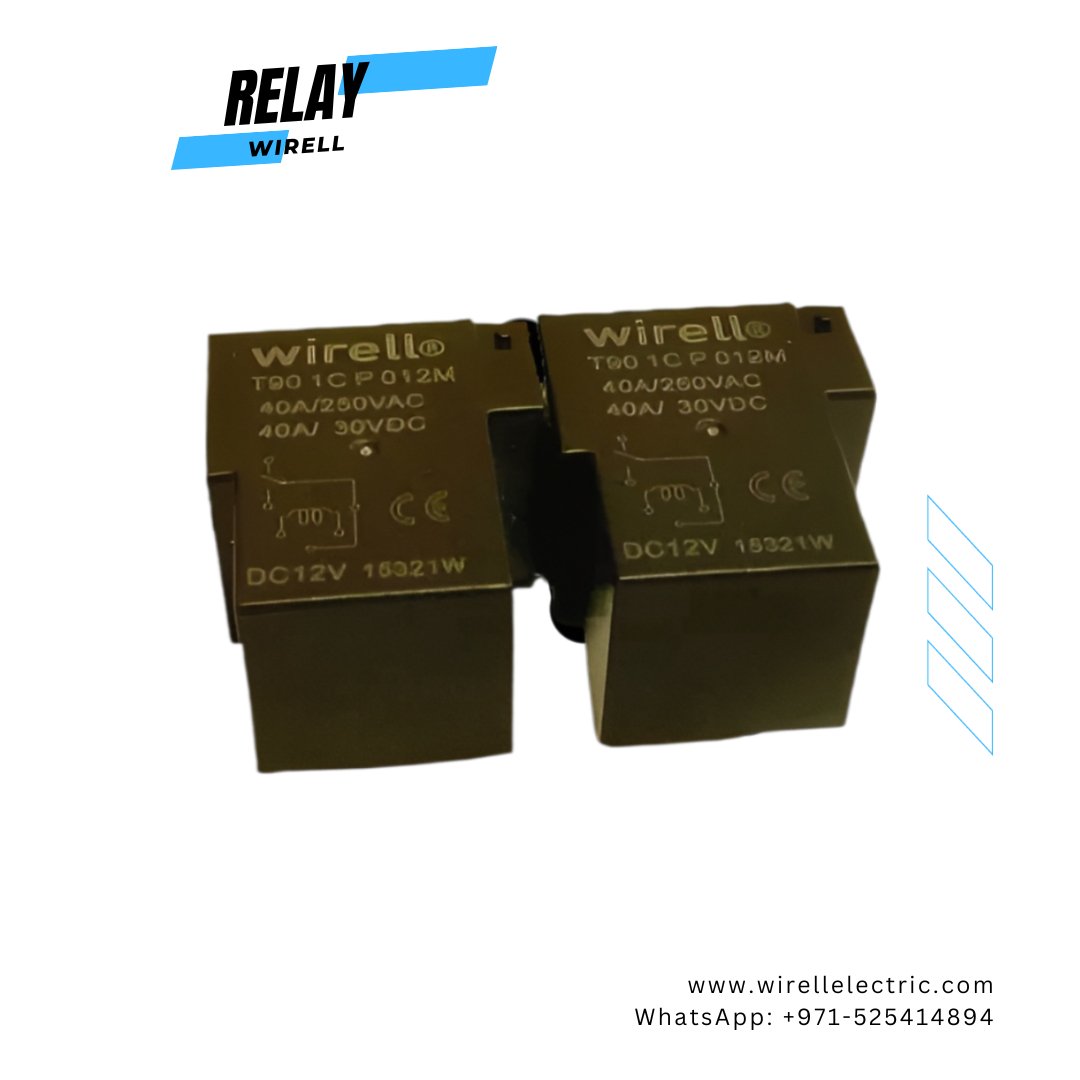

Wirell - T90 - PCB Relay - 20A/30A/40A

Wirell PCB Relay: Compact and Powerful

Key Features:

• Compact Size: This PCB relay is designed with a small footprint, making it space-efficient.
• High Power Capacity: It can handle substantial loads, making it suitable for various use cases: air c, household appliances, cars, etc.
• Easy Installation: The relay is user-friendly and can be easily integrated into your systems.

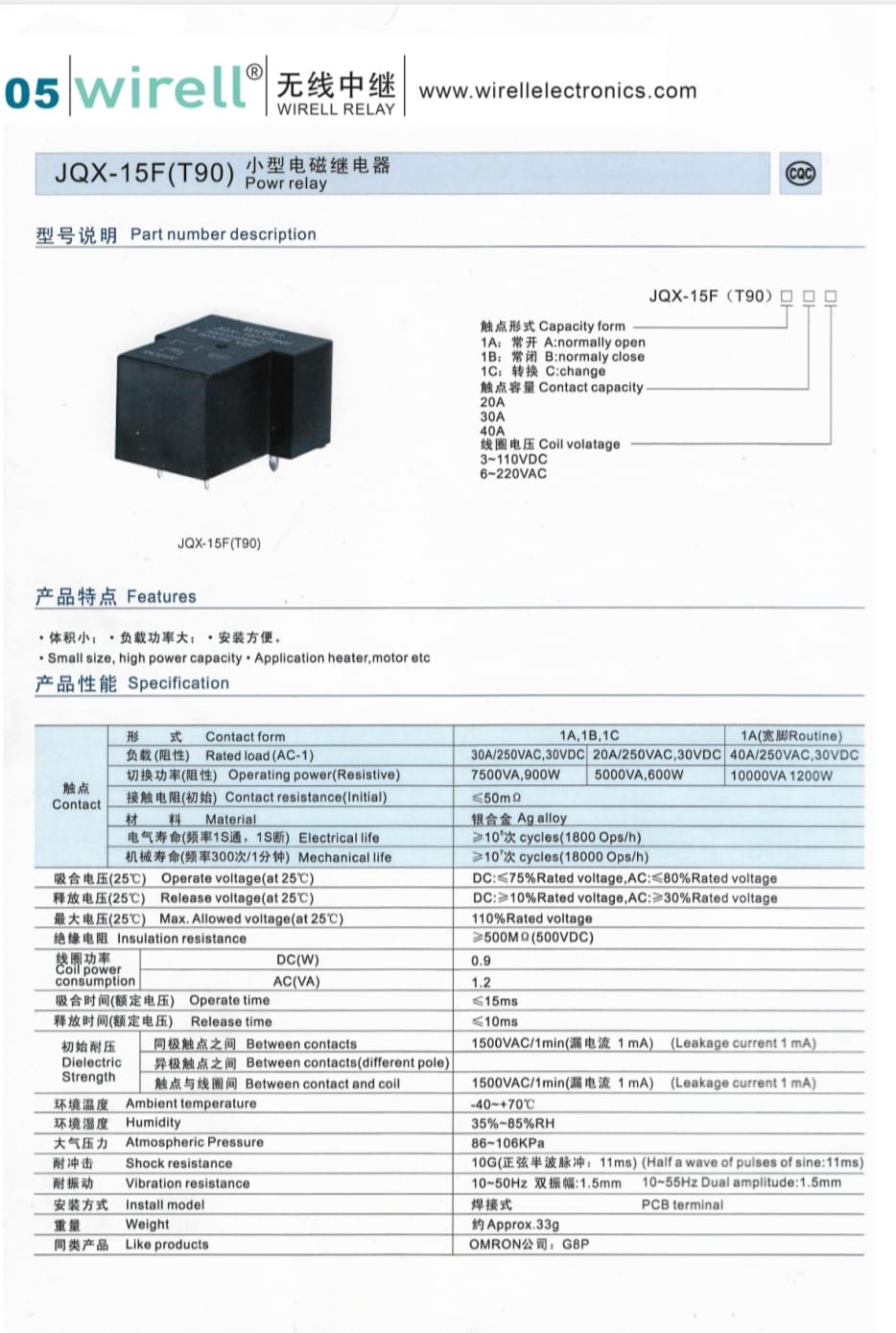

Product Specifications:

• Contact Form: Available in 1A, 1B, and 1C configurations, with a broad 30A/250VAC and 30VDC load capacity.
• Operating Power: It efficiently manages 7500VA and 900W for AC and 5000VA and 600W for DC resistive loads.
• Contact Material: Utilizes durable Ag alloy contacts.
• Electrical Life: Offers a long electrical life, with up to 2x10^5 cycles at 1800 operations per hour.
• Mechanical Life: Withstands mechanical wear, enduring up to 2x10^6 cycles at 18000 operations per hour.
• Operate and Release Voltages: Operates at 110% of rated voltage, releases at 30% for AC, and 10% for DC.
• Max. Allowed Voltage: Handles a maximum of 110% rated voltage for your safety.
• Insulation Resistance: Maintains strong insulation resistance at 500MΩ (500VDC).
• Coil Power Consumption: Efficiently consumes only 0.9W for DC and 12VA for AC.
• Operate and Release Times: Swiftly responds with an operate time of <15ms and a release time of <10ms.
• Dielectric Strength: Demonstrates impressive dielectric strength, surviving 1500VAC/1min with a 1mA leakage current.
• Ambient Conditions: Operates reliably in a wide temperature range from -40°C to +70°C, with humidity levels between 35% to 85% and atmospheric pressure of 86-106kPa.
• Shock and Vibration Resistance: Resilient to shocks up to 10G (11ms) and vibrations in the range of 10-55Hz with a 1.5mm dual amplitude.
• Installation: Designed for easy integration with PCB terminals.
• Weight: Lightweight at approximately 33g.

This Wirell PCB Relay is the perfect solution for applications that demand high performance in a compact form factor. It excels in various electrical and environmental conditions, making it a versatile choice for your projects.
